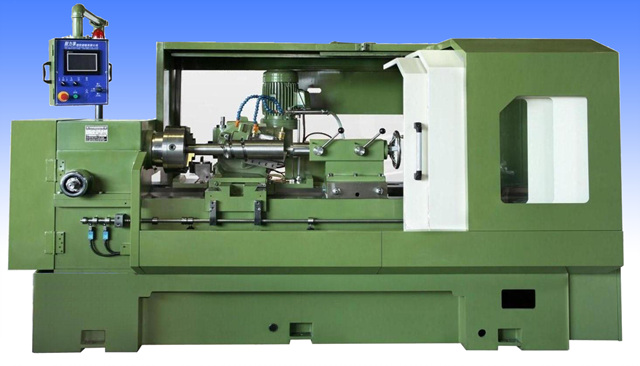

쓰레드 밀링 머신 CNC/NC- IS-M2000A
| Item | IS-M2000A CNC TYPE |
| Cutting Length Max. | 1,800mm |
| Distance of Between Centers | 2,000mm |
| Cutting Diameter Max. | 300mm |
| Cutter of Diameter Max. | 200mm |
| Cutting Pitch Max. Module | M15 |
| Cutting Lead Max. | 180mm |
| Spindle Hole Diameter | 110mm |
| Cutter Revolution | Gear Type ,Control: 85~230RPM |
| Spindle Speeds | Inverter Steplessly Variable 0.1~2.0RPM |
| Operation Manual | 1 Booklet |
| Helix Angle | Right 45° Left 90° |
| Cutter Arbor | 40mm |
| Main Motor (Servo) Mitsubishi | 3HP 4P ( X , Y, C axes) |
| Cutter Driving Motor | 10HP 4P |
| Motor For Cutting Oil | 180 W |
| Hydraulic Motor | 0.4KW 4P |
| Repld Feed Motor | 0.75KW 4P |
| Slide Ways Lubricator Motor | 0.1KW |
| Total Electric Power | 15 KVA |
| Floor Space | 3500 x 1600 x 2000mm |
| Machine Weight | 6,000 KGS |
