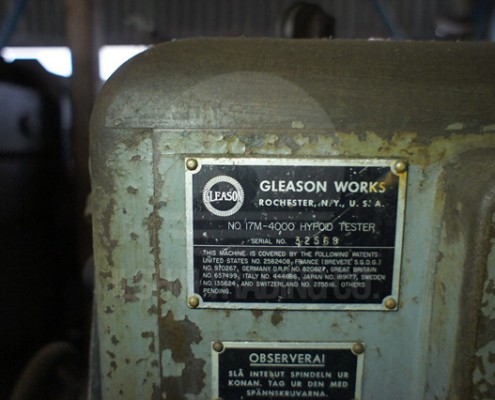

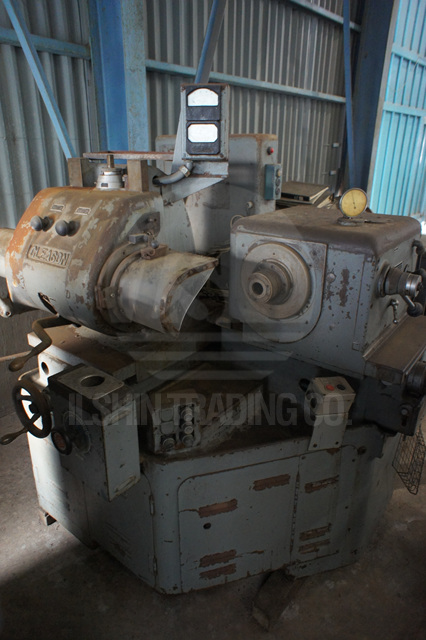

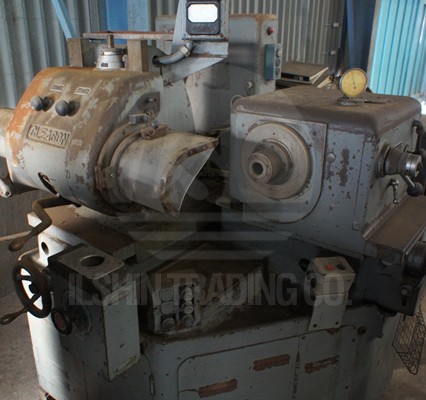

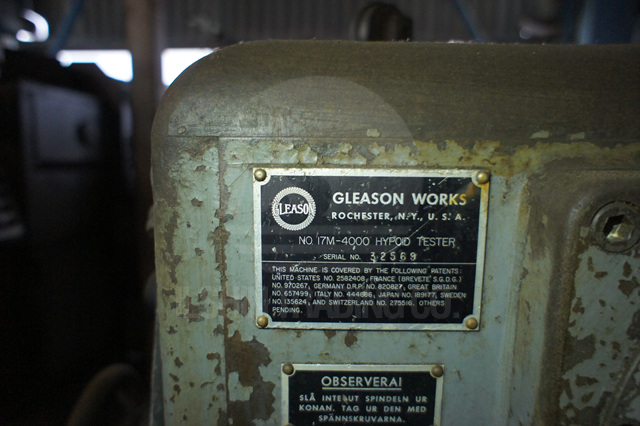

Gleason #17 – Hypoid Gear Tester
Specification
- MAXIMUM DIAMETER OF GEAR 18″
- MAXIMUM OFFSET C/L OF GEAR SPINDLE ABOVE OR BELOW C/L OF PINION SPINDLE 3.5″
- DISTANCE FROM CENTER OF GEAR SPINDLE TO NOSE OF PINION SPINDLE, MAX. 12″, MIN. 5.75″
- DISTANCE FROM CENTER OF PINION SPINDLE TO NOSE OF GEAR SPINDLE, MAX. 6.375″, MIN. 3.50″
- BRAKE (GEAR) SPINDLE (#14 TAPER):
DIAMETER OF TAPER HOLE AT LARGE END 2-19/64″
TAPER PER FOOT 1/2″ - DRIVE (PINION) SPINDLE (#39 TAPER):
DIAMETER OF TAPER HOLE AT LARGE END 3-39/32″
TAPER PER FOOT 39/64″ - DRIVE SPINDLE SPEED 1200 RPM
- FLOOR SPACE (APPROX.) 73″L X 60″W X 66″H
- WEIGHT APPROX. 5,800 LBS.
